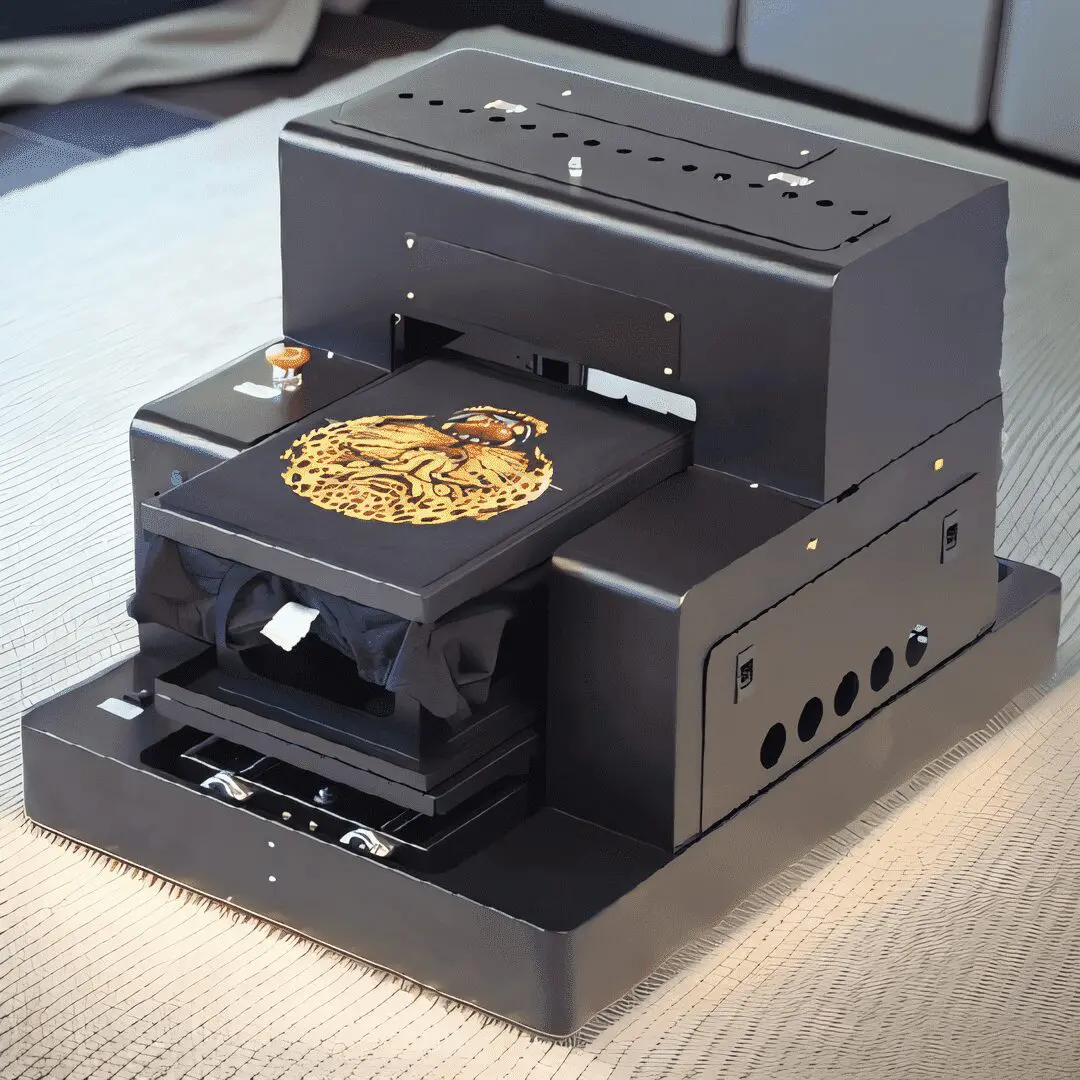

A3 DTG Flatbed Printer

A3 T-Shirt DTG Flatbed Printer

The A3 DTG Flatbed Printer uses water based pigment ink, specially formulated for direct-to-garment (DTG) printing. The ink actually saturates into the garment, so the print feels soft and stays washfast. Plus, the micro piezo inkjet printerhead is capable of incredible detail, so you can print photos and graphics with great quality and no loss of resolution.

$2,499.00

Product ID: 462 Category: .

PRINTER OVERVIEW:

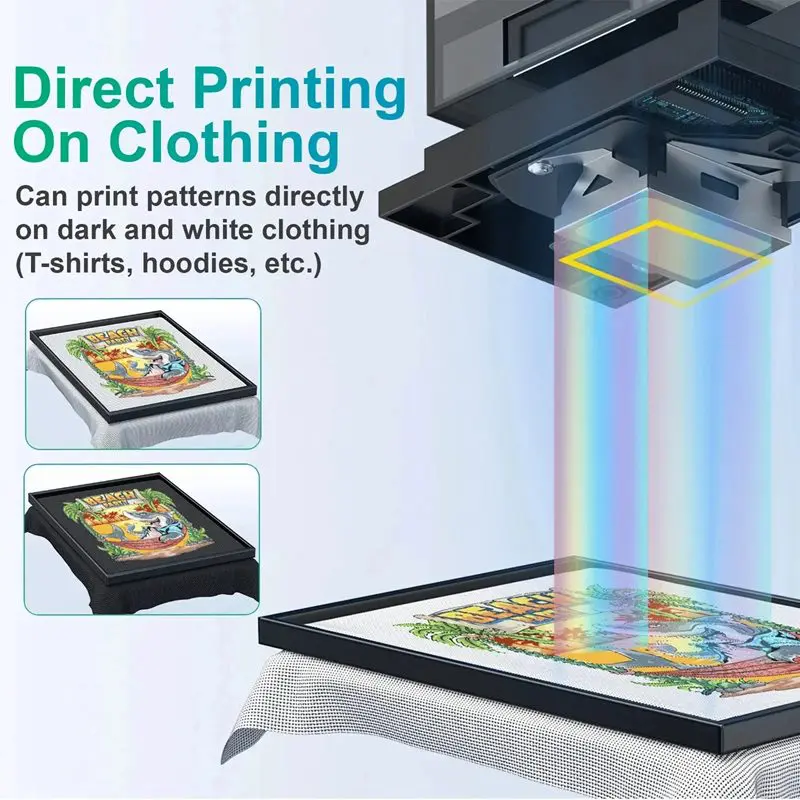

The A3 Direct to Garment (DTG) Flatbed Printer can print directly on the surface of t-shirts, Hoodies, Jeans and all kind of garment. The A3 DTG can print graphics created in any graphics program.

The A3 DTG Flatbed Printer is a great way to keep your printing costs down. This printer allows you to print directly from your computer, and uses Epson printerheads. Printing costs for this machine vary between 0.10¢ – 0.20¢ per print. The A3 is also completely mobile, so it is great for taking to events and printing as you go.

PRINTER FEATURES:

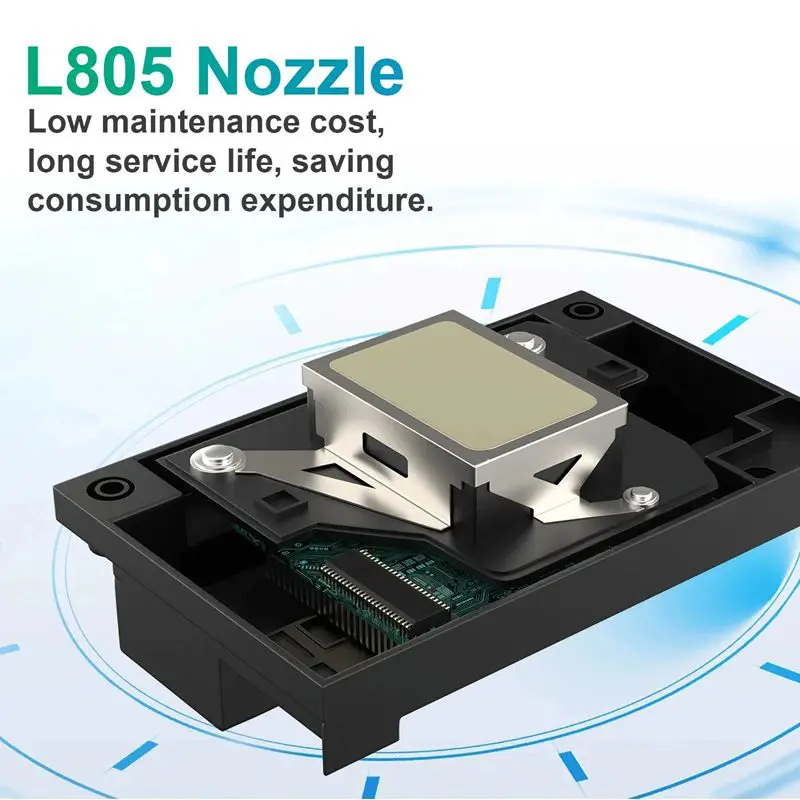

✔ Uses original EPSON printerheads and CISS system…no need worry about the printing quality because this is the same printerhead used in all direct to garment (DTG) printers.
✔ Can print white ink on dark material.
✔ Print time less than 1 minute for most designs.
✔ Print directly from your PC, just like a desktop printer.
✔ Use Adobe Photoshop®, Illustrator® and CorelDRAW® or free programs like GIMP and Inkscape
✔ Completely mobile – great for events.
✔ 5760 x 1440 (dpi) Max print resolution. Great for photo quality prints!
✔ Print vibrant, washable prints on shirts fast and easy.
✔ The printing costs vary between 0.10¢ to 0.20¢ USD per print (20x30cm).

SPECIFICATIONS:

• Print Area: 13″x18.5″ (329mm×470mm)
• Printhead: Piezo 180 nozzles per channel

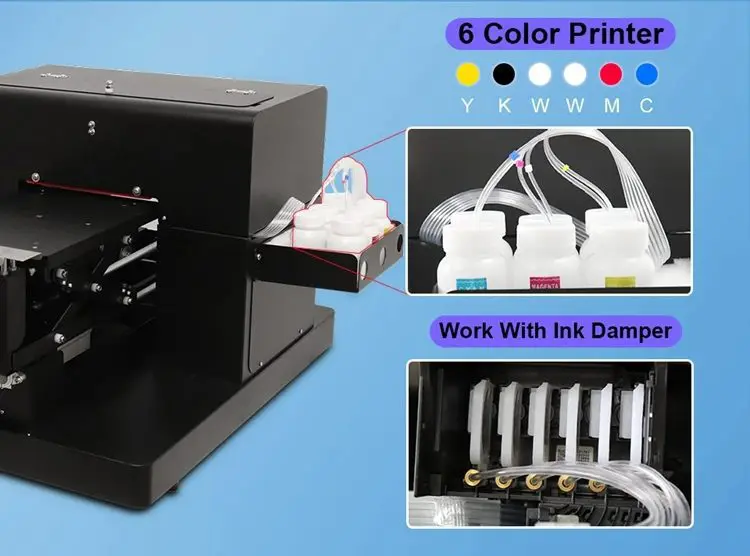

• Print Color: 6-cartridge (CMYK/CMYKWW )
• Max. height of object: 3.1″ (80mm)
• Max. Printing resolution: 5760DPI×1440DPI
• Printing speed: 4″ x 6″ borderless photo in as fast as 46 sec
• Ink: DTG Ink- Piezo compatible pigments/Solvent Ink
• Cleaning System: Automatic Maintenance Processes
• Power: 110/220V 50-60HZ 75W
• Printing Interface: USB
• Operation System: Windows® XP or later
• Working Environment: 10-35 C,20-80 RH
• Printer Net Weight: 55lbs(25kg)
• Printer Size: 31″x24″x15.7″ (80cm×63cm×40cm)
• Max. Printing Weight: 44lbs (20kg)
• Free Tech Support
• 1-Year Limited Warranty

PRINTABLE MATERIALS:

T-Shirts, Hoodies, Jeans and all kind of garment.

APPLICATIONS:

  • All kind of garment
  • It is a compliment to screen printing production and heat-transfer industries as it can do some jobs which are very expensive or not possible with the traditional printing.
  • If input eco solvent ink, can print many other material, like phone case






VIDEOS:

PRODUCT PRICE:

Payment by Bank transfer US$2450
By Paypal US$2599

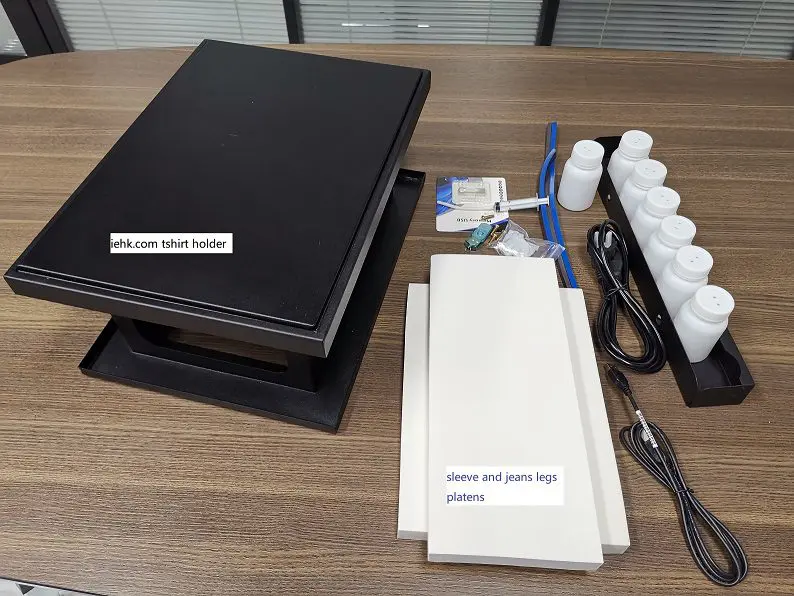

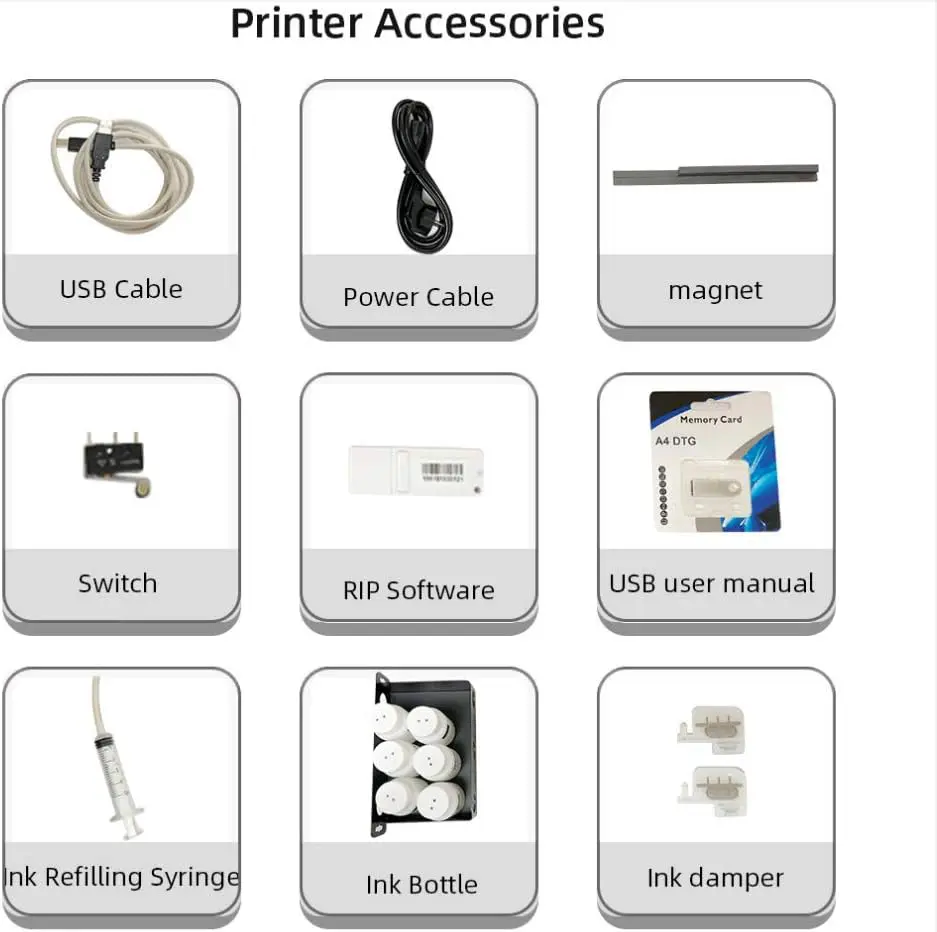

SHIPPING CONTENTS:

1 X A3 DTG Printer with CISS System

1 X RIP Software Set

User Manual and Driver

1 X USB Data Line Set

Ink not included.

DTG ink can order separately here https://www.iehk.com/shop/dtg-textile-ink/

SHIPPING TERMS:

• via DHL Expess, delivery time 7-10 days

19 reviews for A3 T-Shirt DTG Flatbed Printer

  • I have been printing lot of t shirts! excellent printer !!

  • Functioning accurately , no hazards, easy to operate,great machine i have ever bought for my company !!

  • I find it Easy to use, Very fast Shipping. This machine does all automatically. Happy to purchase and work with!!!.

  • Very good printer. Best part part of this printer is the the pricing. Excellent print capabilities and high quality print output. Would buy again

  • This little machine has great capabilities, It turns my T-shirt business to good profit.

  • This is a great printer if you are looking for a machine that can print white ink perfectly on a dark colored fabric. It is very easy to use and price wise it suits my budget because the printer is considerably low priced, I have tried many other brands by this one is best among all!

  • Printing Quality of my T-Shirt is become A one after use this printer. Great finishing and good production rate.

  • Although it is a decent device that lets me print images and graphics on all possible textiles in less than a minute per piece but I have identified a shortcoming. When printing on 100% polyester the printer takes longer and also it only prints perfectly on light colour polyester not dark colour. Other than this problem, I am happy that I made the right choice by buying this versatile printer. I must say the quality of print is very good.

  • I am a small garments business owner and I have been searching for a reliable DTG printer from quite some time now. All the printers I have used recently were not good and I wasn’t satisfied with the result. Ink always got smudged and printing on light colored fabric was quite different than on dark colored ones. However, with A3 flatbed DTG I am fully satisfied because it not only prints on cotton fabric but on different other materials like leather and acrylic, etc. White ink never spreads on dark textile and I can print any graphic on 5760 x 1440 (dpi) resolution.

  • I wasn’t too keen on getting a DTG flatbed printer being a screen printing fan but when I read the positive reviews of this product I decided to give it a shot. I would say it is a good printer because it is portable enough to carry along anywhere, it helps in making the printing process faster and the quality of print is superb. There is no professional training needed to run this thing and the 2-year warranty makes the product even more reliable.

  • Printer works

  • I HAVE A QUESTION. I LIKE THE REVIEWS AND ALL. HOW COMFORTABLE WERE YOU IN BUYING WITHOUT SPEAKING TO ACTUAL HUMAN. I CHATTED AND REQUESTED SOMEONE CALL ME BUT THEY SAID NO. MONEY WILL BE GOING TO HONG KONG. IS THAT HOW YOU PURCHASED?

  • It is an inexpensive, heavy duty printer that allows me to create as many products as I want to, the direct to garment technology has made it so easy to print any possible image effortlessly and this printer is the best in this technology. It is perfect for printing on a variety of materials not just fabrics. If at any point I need to shift my focus from garments to handbags or stationary it would be helpful even then because it can print on almost any material. Moreover, it can handle edible inks too so this is a win-win situation for me at least.

  • I am happy that I can print directly on any fabric and textile. I have a thing for precision and many printers fail to give the same result as created on the computer but this A3 DTG flatbed is different because its image quality is excellent. The printer never ignores even tiniest details and I am able to print it with just a click from my desktop computer. Very user friendly and reliable printer. Must buy if you want great resolution and washfast fabrics.

  • It works, athough need more time to learn use it

  • (verified owner)

    Whoever built these, must have been pretty smart. They thought of everything. They even have a built in ink reset button that tells the machine that it is full of ink again.

    Let me give a few pointers to new users. It is a learning experience you may mess up a few shirts until you get the hang of it. So maybe I can help you a little…

    First of all… Keep a 3mm distance between the shirt and bar. If not a shirt could hang onto the printer head or the printer head get damaged by hitting the table. Before you turn the printer on for the first time make sure that the table is out of the way, With the printer off and the table in manual mode or unplugged, eye the printer head and check the clearing and do so on every shirt until you get a feel for it.

    In your Accurip Partner software (White)… Try these settings..

    Printer = Stylus Photo 1390/1400
    ICC PROFILE USE ACCRO DT3 1390 6COLOR 30 1440×1440
    Ink Channel = YKWWMC (white ink goes in the Light Cyan & Li;ght Magenta Cartridges)
    Paper Size is Your Printer Table Size (For example 13 X 19 on mine)
    Resolution – 1440X1440 DPI (COLOR AND WHITE)
    DOT SIZE = (SMALL COLOR AND WHITE)
    SPEED = Unidirectional
    Ink Limit = (If you set your ink level too high, ink can puddle on the printer head then drip onto the shirt. I had this happen about four times. So you have to experiment to find a balance. Most people use a setting of 55 on a single pass print. What I suggest is that you start out using two passes until you are more comfortable with the machine. Try Ink Limit set at 30 DPI first printing. Send the table back into the machine. The print over the shirt second time with 20 DPI)

    I hope that is of some help to you..

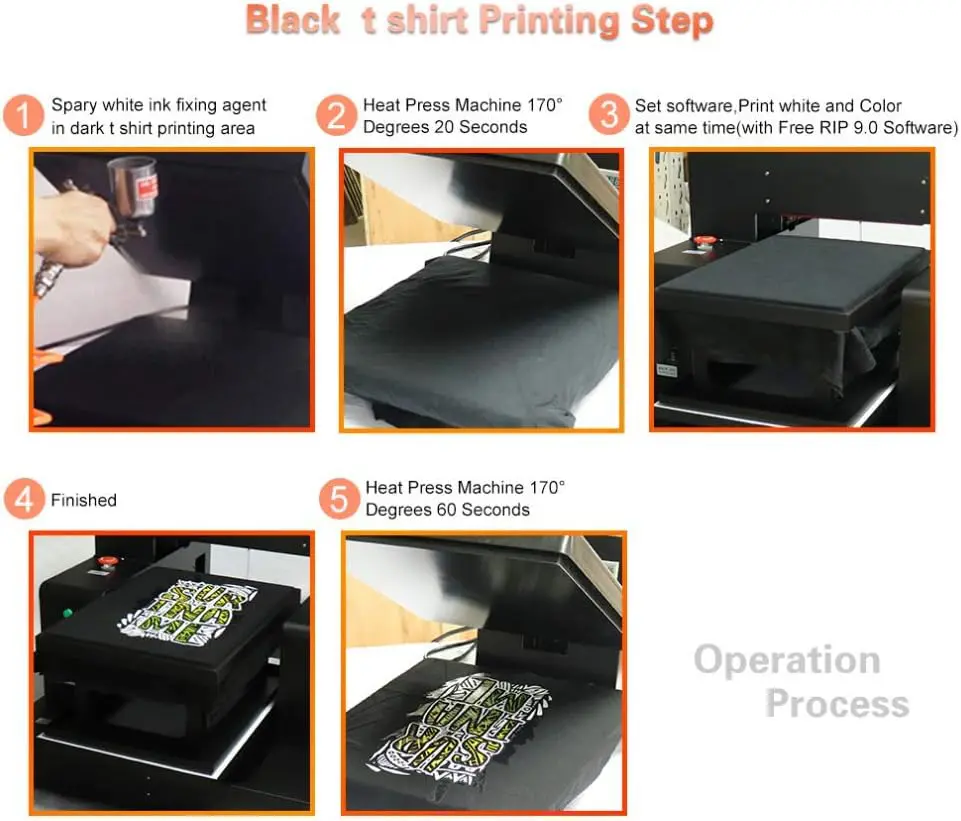

    Having the Pretreatment right is very important to getting a good quality print. I use 50/50 pretreatment and distilled water. Then pretreat a shirt twice 20 grams weight each time. Instead of trying to soak it with pretreatment one time.

    Good Luck

  • This is one of the best purchases I have ever made, this will grow my business exponentially.

  • I have received the machines. They look great and in good condition.

  • Received the printer on time, thanks you!
